3  Ex 2024

Problem 1: Pseudocode

Let \(A\) be the adjacency matrix representation of a directed graph \(G\) with \(n\) nodes. A node \(u\) is called balanced if the in-degree and out-degree of the nodes are equal. Let \(N_A\) be the amount of balanced nodes in the graph \(G\).

  1. Describe an algorithm CountBalanced in pseudocode, that computes \(N_A\) in optimal asymptotic time.
  2. Analyse the run-time of CountBalanced and show that it is optimal.

Problem 2: Heaps

In this problem we look at binary Minheaps and carry out depth first search starting form the root, considering two variants:

  • incrDS: We visit the children of a node in increasing order, sorted w.r.t. the keys
  • decrDS: We visit the children of a node in decreasing oder, sorted w.r.t. the keys

  1. Consider the following Min-Heap represented as an array \(H[1..10]\):

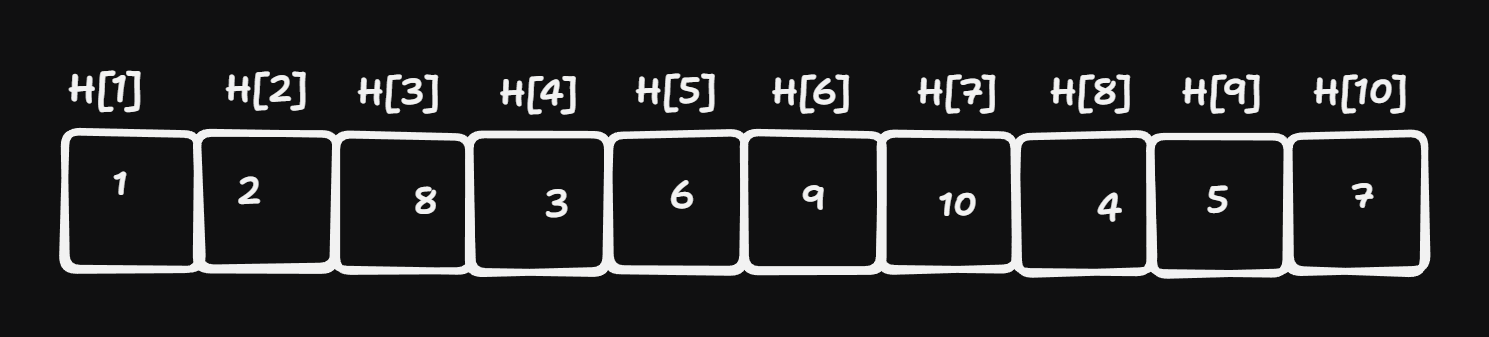

    heap

    Provide the keys in the order that they are visited by decrDS:

    Key-order: …

  2. In the above heap incrDS traverses the keys in a globally increasing order, i.e. it effectively ‘sorts’ the elements. Therefore we try to construct the following “sorting” algorithm:

    Let \(A[1..n]\) be an array with \(n\) keys. (You may assume that the keys are distinct).

    1. Transform \(A\) into a Min-Heap array representation
    2. Traverse \(A\) with incrDS and output the elements in the order that they are visited

    Prove that this algorithm can not always sort correctly. Provide a short analysis on the run-time of this algorithm.

Problem 3: Hashing

  1. Consider the following hash table of size 13:

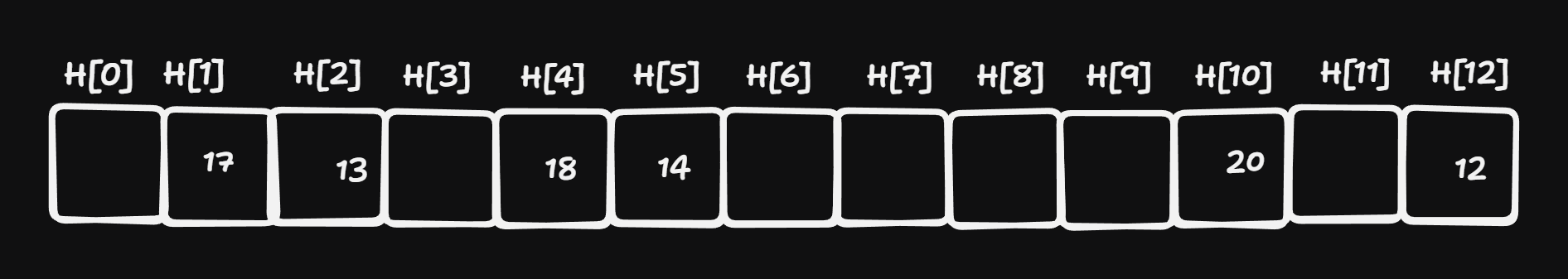

    hash 1

    You can assume that each empty cells corresponds to \(\bot\).

    We consider first open hashing with hash function \(f\), defined as:

    \[f(k) := 3k + 2 \mod 13\]

    and we use linear search. Insert the elements 1, 2, 3, 4, 5 in this order in the provided table.

  2. Consider another hash table of size 10:

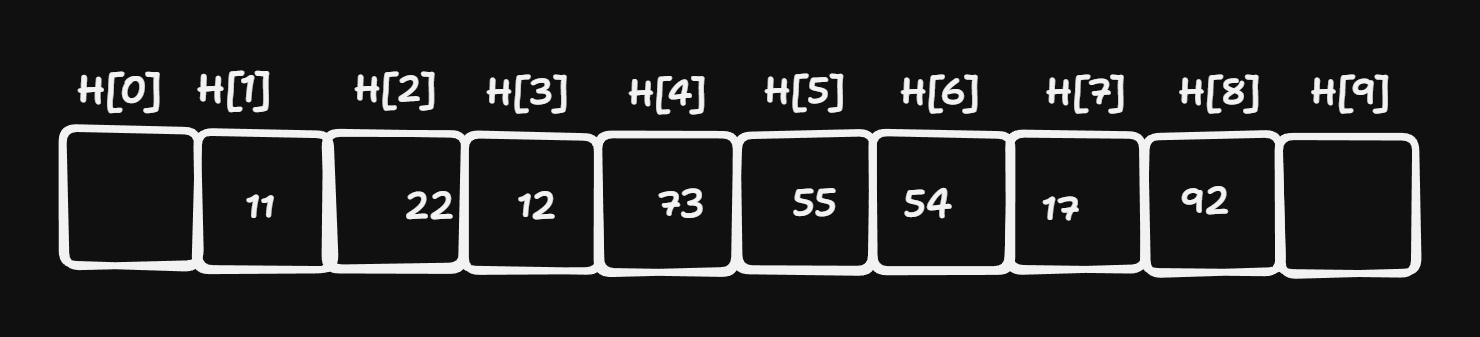

    hash 2

    We again use open hashing this time with the hashing function \(g\) defined as:

    \[g(k) := k\mod 10\]

    Delete the element 22 and provide the state of the hash table after this operation:

Problem 4: \(\mathcal{O}\)-Notation and Code Analysis

  1. for each of the following cases provide a function \(f: \mathbb{N} \to \mathbb{R}\) that satisfies the given asymptotic constraints:

    • \(f \in \omega \left( \frac{\log x}{\log \log x}\right)\) and \(f \in \omicron(\log x)\)
    • \(f \in \omega(\sqrt[3]{m})\) and \(f \in \omicron\left(\frac{m}{\log m}\right)\)
    • \(f \in \omega(\log t!)\) and \(f \in\omicron(t^2)\)

  2. Solve the following recurive equations. For all the equations it holds that \(T(n) = 1\) and \(n\leq 1\). Assume for simplicity that for all equations \(n\) is chosen s.t. divisions result without a rest.

    • \(T(n) = T(n - 1) + 2n\). \(\Rightarrow\) \(\quad\quad T(n) \in \Theta\left(\quad \right)\)
    • \(T(n) = n\cdot T(n - 1)\). \(\Rightarrow\) \(\quad\quad T(n) \in \Theta\left(\quad \right)\)
    • \(T(n) = 16\cdot T(\frac{n}{2})\). \(\Rightarrow\) \(\quad\quad T(n) \in \Theta\left(\quad \right)\)
    • \(T(n) = 2\cdot T(\frac{n}{4}) + n\). \(\Rightarrow\) \(\quad\quad T(n) \in \Theta\left(\quad \right)\)

  3. Provide the run-time complexit of the follwoing pseudocode algorithms in \(\mathcal{\Theta}\) notation.

    • :

      read(k)
for i = 1 to k:
 j = k^2
 while j > 1:
    j = j / 3

    • :

      read(t)
k = 1
i = 1
while k <= t :
 i = i + 1
 k = k + i

    • :

      def fun(n) :
 read(n)
 if n < 10^6 : return
 f(n / 2)
 i = 0
 while i < n : i = i + 1
 f(n / 2)

Problem 5: Short Proofs

Show or refute following propositions:

  1. Let \(T = (V, E)\) be an arbitrary \((a, b)\)-Tree. Then \(T\) is also a \((a, b + 1)\)-Tree
  2. For any weighted, undirected, connected graph \(G = (V, E)\) any shortest-path tree is a minimal spanning tree.
  3. For any \(n > 1000\) there is a binary search tree that stores \(n\) keys \(\{1, \ldots, n\}\)

Problem 6: Induction

For a set \(X\), \(\mathcal{P}(A)\) is the set of all subsets of \(X\), called the power set.

Shows via mathematical induction that:

\[\text{for any set } X \text{ s.t. } |X| = n \text{ it holds that } |\mathcal{P}(X)| = 2^n\]

Problem 7: Graphs

  1. Consider the following graph \(G\):

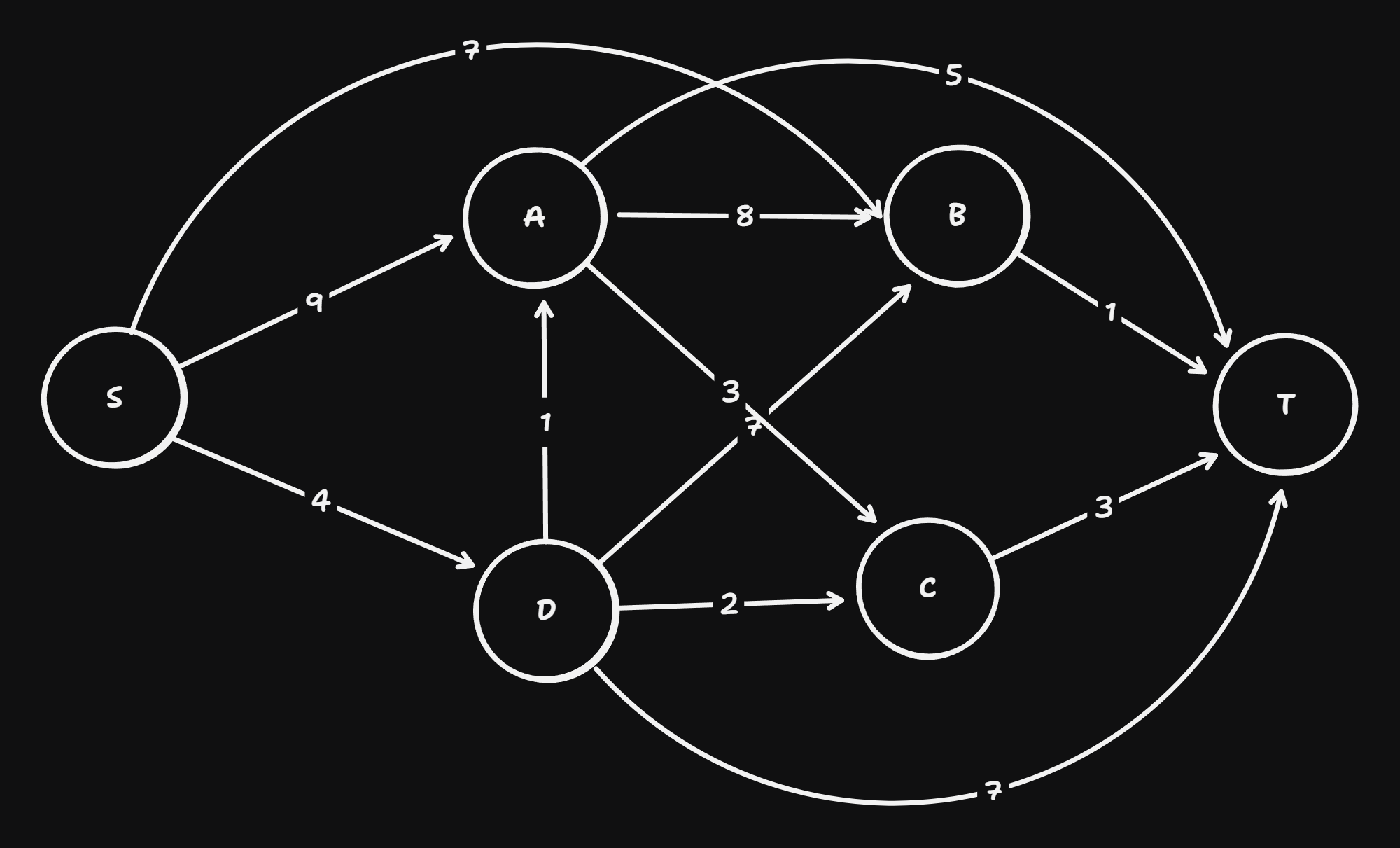

    graph-1

    Carry out the Dijkstra algorithm to find the shortest paths starting from the start node \(S\).

    Provide each (Predecessor, Distance)-combination that is assigned to the node \(T\) by the algorithm:

  2. provide the adjacency field representation of the following graph (CSR). Use the 1 as the smallest index and sort the neighbours in increasing order w.r.t. the index.

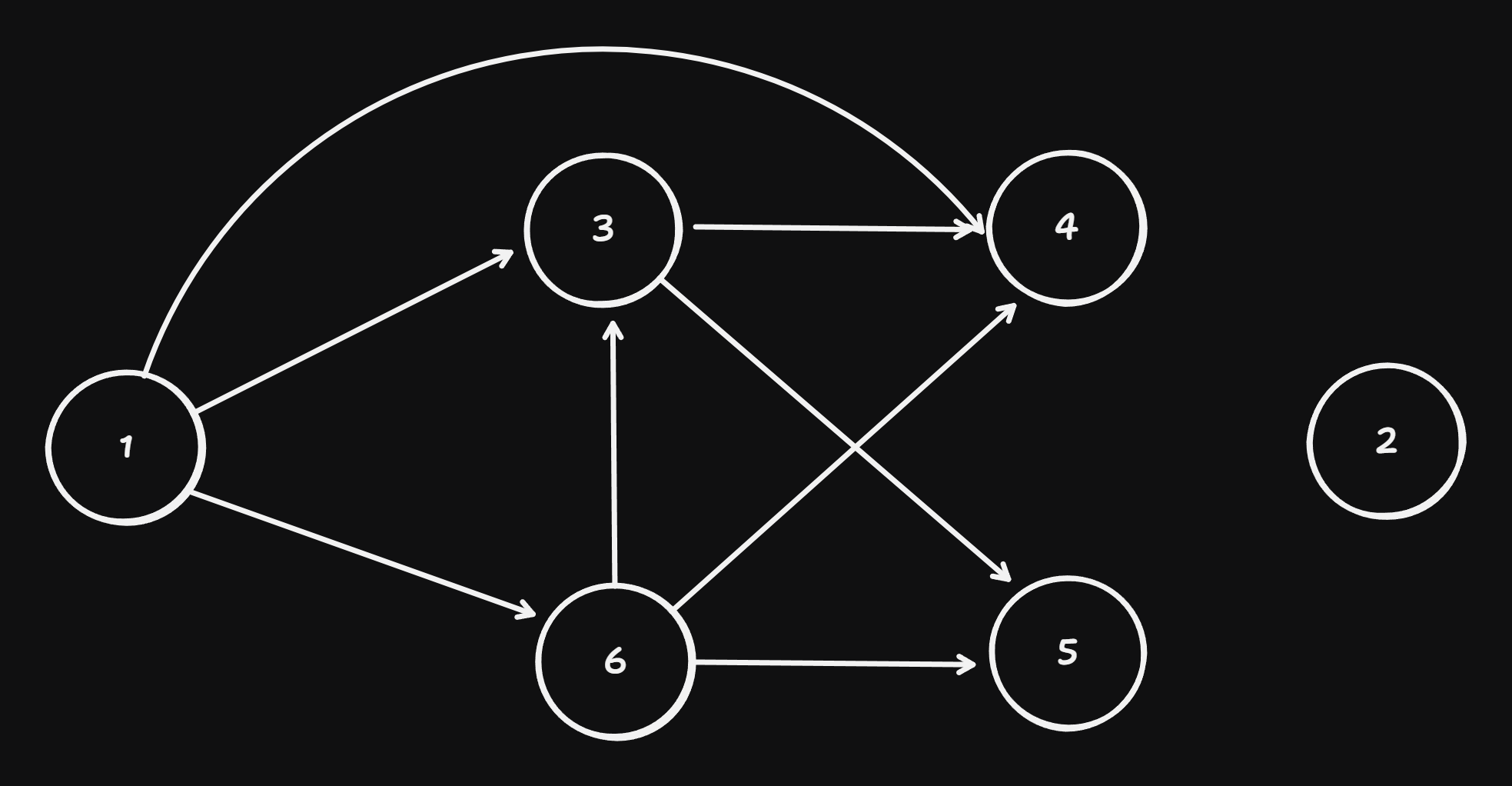

    graph-2

  3. Describe in pseudocode how the k-th neighbor of the i-th node is represented in the adjacency-field representation, using 1 as the smallest index. Name the invariants in the code that guarantee that required entry exists in the data structure. Provide the asymptotic analsysis of the \(\Theta\) run-time of the algorithm.
