3 Conversions

3.1 Floating Point Types

In this project there are three groups of number formats:

simulated low precision via CPFloat
native C++ hardware types float and double
high / arbitrary precision via GMP

The low precision fp8, fp16, bfloat16 are simulated via CPFloat.

An overview of types defined in HDNUM:

HDNUM / project type	Provider	Parameters	Corresponds to in Higham–Mary	Unit roundoff, roughly
`FP8`	CPFloat	`CPFloat<4,4>`	custom 8-bit / “quarter precision”-like format	\(2^{-4}\approx 6.25\cdot 10^{-2}\)
`bfloat16`	CPFloat	`CPFloat<8,8>`	Higham–Mary `bfloat16`	\(2^{-8}\approx 3.91\cdot 10^{-3}\)
`FP16`	CPFloat	`CPFloat<11,5>`	IEEE half precision, Higham–Mary `fp16`	\(2^{-11}\approx 4.88\cdot 10^{-4}\)
`FP32`	native C++ `float`	effectively `(24,8)`	IEEE single precision, Higham–Mary `fp32`	\(2^{-24}\approx 5.96\cdot 10^{-8}\)
`FP64`	native C++ `double`	effectively `(53,11)`	IEEE double precision, Higham–Mary `fp64`	\(2^{-53}\approx 1.11\cdot 10^{-16}\)
`FP128`	GMP	approx. 128-bit, `FP<64>`	software high precision / “quadruple-like” role, not necessarily IEEE `fp128`	depends on HDNUM wrapper
`FP256`	GMP	approx. 256-bit, `FP<192>`	multiprecision reference precision	depends on chosen GMP precision
`FP512`, `FP1024`	GMP	approx. 512 / 1024-bit	multiprecision, beyond Higham–Mary’s standard table	depends on chosen GMP precision

As a reminder the three-precision LU-IR algorithm is:

1. Compute the LU factorization PA = LU in precision uf.
2. Solve LU x0 = P b in precision uf; cast x0 to precision u.
3. While not converged:
   4. Compute ri = b - A xi in precision ur.
   5. Cast ri to precision u.
   6. Solve LU di = P ri in precision uf; cast di to precision u.
   7. Update xi+1 = xi + di in precision u.

i.e.:

Compute LU in \(u_f\)
Solve the initial system in \(u_f\)
Compute residuals in \(u_r\)
Cast residuals to \(u\)
Solve correction equations using the low-precision LU factors in \(u_f\)
update in \(u\)

For the algorithm the intended mapping is:

Algorithm role	Meaning	Typical project choices
\(u_f\)	factorization precision; low precision used for LU	`FP8`, `bfloat16`, `FP16`, sometimes `FP32`
\(u\)	working precision; stores \(A,b,x_i\) and updates solution	usually `FP32` or `FP64`
\(u_r\)	residual precision; computes \(r_i=b-Ax_i\) accurately	`FP64`, `FP128`, maybe `FP256` for experiments

A reasonable set of experiments could be:

Experiment	\(u_f\)	\(u\)	\(u_r\)
baseline sanity check	`FP64`	`FP64`	`FP64`
classical mixed precision	`FP32`	`FP64`	`FP64`
half/double refinement	`FP16`	`FP64`	`FP64`
half/double with higher residual	`FP16`	`FP64`	`FP128`
bfloat comparison	`bfloat16`	`FP64`	`FP64`
very low precision stress test	`FP8`	`FP64`	`FP128`

3.2 Type Conversions

Again, the precisions for the algorithm are:

\(u_f\): factorization / solve precision (low)
\(u\): working precision (medium)
\(u_r\): residual precision (high)

LU is computed in \(u_f\), the initial solution is cast to \(u\), the residual is computed in \(u_r\) and cast back to \(u\), the correction solve uses the low-precision LU factors, and the correction is cast to \(u\) before updating.

So the practically necessary conversions are:

Conversion
\(u \to u_f\)		create low-precision copies of \(A\), \(b\), or residuals for LU / triangular solves.
\(u_f \to u\)		bring \(x_0\) and correction \(d_i\) back to working precision.
\(u \to u_r\)		compute \(r_i = b - Ax_i\) in high precision.
\(u_r \to u\)		The residual is cast back before solving the correction equation.
\(u_f \leftrightarrow u_r\)	not strictly needed	You normally convert through the working representation, or independently convert from the original \(A,b,x\).

Implementing Conversions - Naive Approach

HDNum implements wrappers FP and CPFloat for the high-precision GMP and the low precision CPFloat types in the source files highprec_gmp.hh and lowprec_cpfloat.hh.

We are asked not to modify HDNum source files, instead implement explicit conversion functions:

template<class T_out, class T_in>
void convert(Vector<T_out>& out, const Vector<T_in>& in);

template<class T_out, class T_in>
void convert(DenseMatrix<T_out>& out, const DenseMatrix<T_in>& in);

The approach is to assign to out element-wise in loops, where the values constructed from the corresponding elements of in. A naive approach is to do:

#pragma once

#include <cstddef>
#include "hdnum.hh"

namespace mpir {

// Vector conversion: resizes output if needed.
template<class T_out, class T_in>
void convert(hdnum::Vector<T_out>& out,
             const hdnum::Vector<T_in>& in)
{
    if (out.size() != in.size()) {
        out.resize(in.size());
    }

    for (std::size_t i = 0; i < in.size(); ++i) {
        out[i] = T_out(in[i]);
    }
}

// Convenience wrapper: allocates a new vector.
template<class T_out, class T_in>
hdnum::Vector<T_out> convert_vector(const hdnum::Vector<T_in>& in)
{
    hdnum::Vector<T_out> out(in.size());
    convert(out, in);
    return out;
}


// Matrix conversion: output matrix must already have correct shape.
template<class T_out, class T_in>
void convert(hdnum::DenseMatrix<T_out>& out,
             const hdnum::DenseMatrix<T_in>& in)
{
    if (out.rowsize() != in.rowsize() || out.colsize() != in.colsize()) {
        throw std::invalid_argument(
            "mpir::convert(DenseMatrix): output matrix has wrong size"
        );
    }

    for (std::size_t i = 0; i < in.rowsize(); ++i) {
        for (std::size_t j = 0; j < in.colsize(); ++j) {
            out[i][j] = T_out(in[i][j]);
        }
    }
}

// Convenience wrapper: allocates a new matrix.
template<class T_out, class T_in>
hdnum::DenseMatrix<T_out> convert_matrix(const hdnum::DenseMatrix<T_in>& in)
{
    hdnum::DenseMatrix<T_out> out(in.rowsize(), in.colsize());
    convert(out, in);
    return out;
}

Where the type conversion is done via the assignment:

out[i] = T_out(in[i])

for each element.

But this doesn’t work for all pairs of T_in, T_out because not all the necessary constructors or conversion operators are implemented in the classes CPFloat and FP

Which Conversions Work which Don’t ?

FP provides the constructors:

FP()
FP(const double &)
FP(const float &)
FP(const int &)
FP(const mpf_class &)
FP<mm>(const FP<mm>&)

So the conversion:

double => GMP

works

CPFloat provides the constructors:

CPFloat()
CPFloat(const double &)
CPFloat<mm, ee>(const double &)

So:

double => CPFloat

works

CPFloat also provides the conversion operator operator double() const. Therefore

CPFloat => double

works as well.

Because CPFloat can be converted to double and GMP can be constructed from a double:

CPFloat => GMP

works too, by the implicit conversion of CPFloat to a double

But since the FP class doesn’t provide a double() operator the conversion

GMP => double

doesn’t work.

Also CPFloat doesn’t implemenet a constructor that accepts a GMP type, (or also because FP doesn’t provide a double() operator) the conversion:

GMP => CPFloat

doesn’t work.

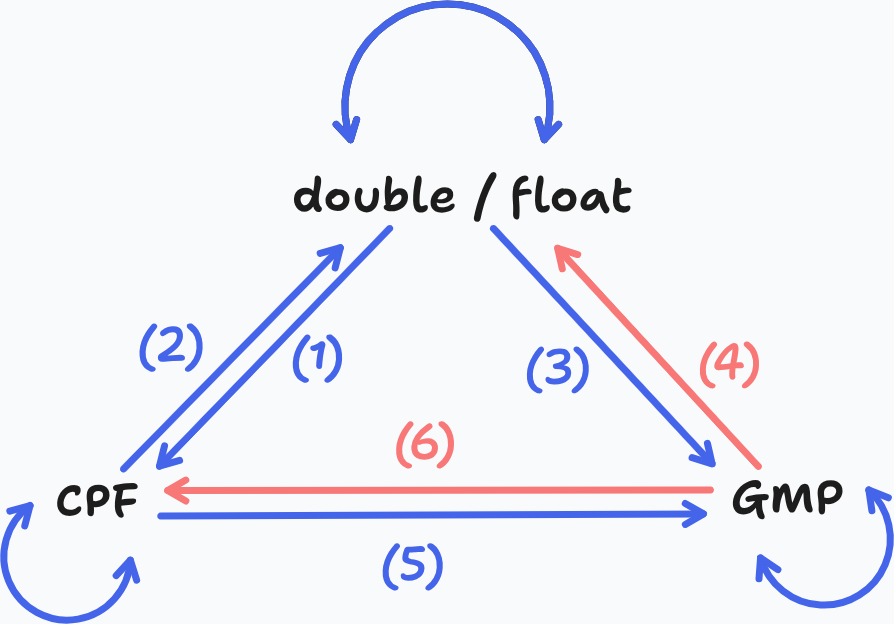

We summarize this with the following diagram and table:

Table 3.1: conversion table

Nr	Conversion	Works ?	Why ?
(1)	`double` \(\Rightarrow\) `CPFloat`	Yes	`CPFloat(const double &)`
(2)	`CPFloat` \(\Rightarrow\) `double`	Yes	`CPFloat::double()`
(3)	`double` \(\Rightarrow\) GMP	Yes	`FP(const double &)`
(4)	GMP \(\Rightarrow\) `double`	No	No `FP::double()`
(5)	`CPFloat` \(\Rightarrow\) GMP	Yes	`CPFloat` is converted to `double` implicitly
(6)	GMP \(\Rightarrow\) `CPFloat`	No	No `FP(const CPFloat &)` or no `FP::double()`

So if the conversion operator FP::double() would be implemented both (4) and (6) would work. (6) would work too because GMP type would be implicitly converted to a double and a CPFloat would be constructed. But more explicitly a constructor FP(const CPFloat &) can be implemented too.

But since we are initially not allowed to modify HDNUM source code we take a different approach.

Structure of `FP` and `CPFloat` Classes

classDiagram
   class FP {
      -mpf_class number
      +FP()
      +FP(const double &)
      +FP(const mpf_class &)
      +FP(...)
      +getNumber() mpf_class
   }

   class CPFloat {
      -double number
      +CPFloat()
      +CPFloat(const double &)
      +CPFLoat(...)
      +operator double()
      +getNumber() double
   }

FP:
- FP has a single private member variable number that is an GMP type, i.e. mpf_class.
- it can be accessed with the public getter const getNumber() : mpf_class
CPFloat:
- CPFloat has a single private member variable number of type double.
- it can be accessed with the public getter const getNumber() : double

Note

There’s a mistake in HDNUM highprec_gmp.hh source file. The member variable number is documented as:

highprec_gmp.hh

private:
    // stores a double to represent the low precision number
    mpf_class number;

The comment // stores a double to represent the low precision number is wrong, and is probably copied over by mistake from lowprec_cpfloat.hh:

lowprec_cpfloat.hh

private:
    // stores a double to represent the low precision number
    double number;

Instead it should be something like:

// stores an mpf_class to represent the high precision GMP number

With the above interface, given a GMP number, the double representation of the number can be obtained with:

Listing 3.1: get_d() method

hdnum::FP128 fp128_number(1.2345);
auto d = fp128_number.getNumber().get_d(); //d is double

Where we use the .get_d() method of mpf_class to get the double representation of the GMP number.

Implementing Conversions - Correct Approach

The main issue is that

out[i] = T_out(in[i]);

does not work uniformly for all type pairs. We replace this direct construction step with:

out[i] = scalar_convert<T_out>(in[i]);

This selects the appropriate conversion path at compile time, depending on the input and output types using standard library type traits and if constexpr

As summarized in Figure 3.1 and Table 3.1, the only conversions that do not work by direct construction are:

FP \(\Rightarrow\) double,
FP \(\Rightarrow\) CPFloat

All other relevant cases can be handled by direct construction of the form:

T_out(x) // where x has type T_in

In C++, we can check at compile time whether an object of type T_out can be constructed from an argument type const T_in& using the standard library type trait:

std::is_constructible_v<T_out, const T_in&>

This expression evaluates to true if such a construction is valid, and to false otherwise.

It can be verified that this indeed evaluates to false only for the conversion pairs:

T_out == double, T_in == FP
T_out == CPFloat, T_in == FP

Then, the initial part of scalar_cast can be written as:

template<class T_out, class T_in>
T_out scalar_cast(const T_in& x)
{
    if constexpr (std::is_constructible_v<T_out, const T_in&>) {
        return T_out(x); // we use the direct construction
    }
    else { //remaining cases: FP => double || FP => CPFloat
        ...
    }
}

Logically, we know that the only possible cases in the else branch are:

T_out == double, T_in == FP
T_out == CPFloat, T_in == FP

In both cases T_in is an FP type. as we’ve seen in Listing 3.1 the double representation of an FP number x can be extracted with:

x.getNumber().get_d()

Since both CPFloat and double can be constructed from a double, we could simply write:

template<class T_out, class T_in>
T_out scalar_cast(const T_in& x)
{
    if constexpr (std::is_constructible_v<T_out, const T_in&>) {
        return T_out(x); // we use the direct construction
    }
    else { //remaining cases: FP => double || FP => CPFloat
        return T_out(x.getNumber().get_d());
    }
}

However, this version is not robust enough because the else branch relies on our prior reasoning that only the two exceptional cases can reach it. The code itself does not express this assumption. If scalar_cast is later instantiated with another unsupported conversion pair, the compiler will still try to compile

x.getNumber().get_d()

even if T_in is not an FP type. This should lead to implementation-dependent and potentially confusing error message.

Therefore, it is better to make the remaining cases explicit using another if constexpr condition:

template<class T_out, class T_in>
T_out scalar_cast(const T_in& x)
{
    if constexpr (std::is_constructible_v<T_out, const T_in&>) {
        return T_out(x); // direct construction works
    }
    else if constexpr (
        is_hdnum_fp_v<T_in> &&
        std::is_constructible_v<T_out, double>
    ) {
        return T_out(x.getNumber().get_d());
    }
    else {
        static_assert(always_false<T_out, T_in>::value,
                      "unsupported scalar conversion");
    }
}

Here, the helper trait is_hdnum_fp_v<T> detects whether a type T is one of HDNUM’s GMP-based high precision numbe types hdnum::FP<m>. This is a compile-time Boolean value, and analogous to the standard library traits such as std::is_constructible_v.

The implementation, given below, follows a common template metaprogramming partial specialization pattern:

// Detect HDNUM's GMP wrapper type hdnum::FP<m>
template<class T>
struct is_hdnum_fp_impl : std::false_type {};

template<int m>
struct is_hdnum_fp_impl<hdnum::FP<m>> : std::true_type {};

template<class T>
inline constexpr bool is_hdnum_fp_v =
    is_hdnum_fp_impl<
        std::remove_cv_t<std::remove_reference_t<T>>
    >::value;

The first part

template<class T>
struct is_hdnum_fp_impl : std::false_type {};

is the default case and says:

for an arbitrary type T, it is false

So:

is_hdnum_fp_impl<double>::value       // false
is_hdnum_fp_impl<float>::value        // false
is_hdnum_fp_impl<hdnum::FP16>::value  // false, because CPFloat, not GMP FP

The second part

template<int m>
struct is_hdnum_fp_impl<hdnum::FP<m>> : std::true_type {};

is the specialization case, and says:

if the type has the form hdnum::FP<m>, it is true.

So:

is_hdnum_fp_impl<hdnum::FP128>::value  // true
is_hdnum_fp_impl<hdnum::FP256>::value  // true

The last part

template<class T>
inline constexpr bool is_hdnum_fp_v =
 is_hdnum_fp_impl<
     std::remove_cv_t<std::remove_reference_t<T>>
 >::value;

defines a compile-time boolean variable template. For example:

is_hdnum_fp_v<double>          // false
is_hdnum_fp_v<hdnum::FP128>   // true

It is analogous to standard library helpers such as:

std::is_arithmetic_v<T>
std::is_constructible_v<T, Args...>
std::is_convertible_v<From, To>

and allows to write

is_hdnum_fp_v<T>

instead of

is_hdnum_fp_impl<T>::value

The keyword inline is needed for variable that are defined in header files.

The use of:

std::remove_reference_t<T>
std::remove_cv_t<T>

makes the trait insensitive to references and const / volatile qualifiers. For example this way all of the following are treated as the same:

hdnum::FP<64>
const hdnum::FP<64>
hdnum::FP<64>&
const hdnum::FP<64>&

Without removing references and cv-qualifiers, the specialization would not match types such as hdnum::FP<m>&

The final branch of `scalar_cast`

else{
    static_assert(always_false<T_out, T_in>::value,
        "unsupported scalar conversion");
}

This branch is reached only if neither of the previous compile-time conditions applies:

std::is_constructible_v<T_out, const T_in&>

is false, so direct construction does not work, and

is_hdnum_fp_v<T_in> && std::is_constructible_v<T_out, double>

is also false, so the special FP => double / FP => CPFloat conversion path doesn’t apply either.

Therefore, if the compiler reaches this final ‘else’ branch, the requested scalar conversion is unsupported. In that case, we want compilation to fail with a clear error message.

The helper trait is defined as:

template<class...>
struct always_false : std::false_type {};

This defines a type trait that is always false, regardless of the template arguments. For example:

always_false<int>::value                 // false
always_false<double, int>::value         // false
always_false<hdnum::FP<64>, double>::value // false

The class... syntax denotes a template parameter pack and means that always_false can accept any number of template type arguments. In our case we use two arguments:

always_false<T_out, T_in>::value

It is important that always_false<T_out, T_in>::value depends on template parameters T_out and T_in, as it lets us create a compile-time false value that is evaluated when the templates are instantiated and not when the function is parsed. Omitting and writing simply static_assert(false, ...) would cause the assertion to be checked when the function template is parsed, and not only when the template is instantiated and the final branch is actually selected for the concrete instantiation.

`scalar_cast` Final Version

#pragma once

#include <cstddef>
#include <stdexcept>
#include <type_traits>

#include "hdnum.hh"

namespace mpir {

// Helper for dependent static_assert(false)
template<class...>
struct always_false : std::false_type {};


// Detect HDNUM's GMP wrapper type hdnum::FP<m>
template<class T>
struct is_hdnum_fp_impl : std::false_type {};

template<int m>
struct is_hdnum_fp_impl<hdnum::FP<m>> : std::true_type {};

template<class T>
inline constexpr bool is_hdnum_fp_v =
    is_hdnum_fp_impl<
        std::remove_cv_t<std::remove_reference_t<T>>
    >::value;


// Scalar conversion
template<class T_out, class T_in>
T_out scalar_cast(const T_in& x)
{
    if constexpr (std::is_constructible_v<T_out, const T_in&>) {
        return T_out(x);
    }
    else if constexpr (
        is_hdnum_fp_v<T_in> &&
        std::is_constructible_v<T_out, double>
    ) {
        return T_out(x.getNumber().get_d());
    }
    else {
        static_assert(always_false<T_out, T_in>::value,
                      "mpir::scalar_cast: unsupported scalar conversion");
    }
}


// Vector conversion
template<class T_out, class T_in>
void convert(hdnum::Vector<T_out>& out,
             const hdnum::Vector<T_in>& in)
{
    if (out.size() != in.size()) {
        out.resize(in.size());
    }

    for (std::size_t i = 0; i < in.size(); ++i) {
        out[i] = scalar_cast<T_out>(in[i]);
    }
}




// DenseMatrix conversion
template<class T_out, class T_in>
void convert(hdnum::DenseMatrix<T_out>& out,
             const hdnum::DenseMatrix<T_in>& in)
{
    if (out.rowsize() != in.rowsize() || out.colsize() != in.colsize()) {
        throw std::invalid_argument(
            "mpir::convert(DenseMatrix): output matrix has wrong size"
        );
    }

    for (std::size_t i = 0; i < in.rowsize(); ++i) {
        for (std::size_t j = 0; j < in.colsize(); ++j) {
            out[i][j] = scalar_cast<T_out>(in[i][j]);
        }
    }
}


// convenience function
template<class T_out, class T_in>
hdnum::DenseMatrix<T_out> convert_matrix(const hdnum::DenseMatrix<T_in>& in)
{
    hdnum::DenseMatrix<T_out> out(in.rowsize(), in.colsize());
    convert(out, in);
    return out;
}

// convenience function
template<class T_out, class T_in>
hdnum::Vector<T_out> convert_vector(const hdnum::Vector<T_in>& in)
{
    hdnum::Vector<T_out> out(in.size());
    convert(out, in);
    return out;
}

} // namespace mpir
