1  Lecture 1 - Propositional Logic: Syntax

Overview

Brief summary of what this lecture does (2–4 lines).

Goal: Define the expression we can write, these are called well-formed-formulas, or wffs.

There are various ways of defining what counts as a wff. One of them is the inductive approach.

Inductive Approach

First we start with atomic formulas:

\[ \begin{aligned} &P_0, P_1, P_2, \dots \\ &(P_i)_{i \in \mathbb{N}} \end{aligned} \]

are atomic propositions.

We give some rules to inductively define new formulas from old ones.

  1. if \(\varphi\), \(\psi\) are wff then \(\varphi \Rightarrow \psi\) is a wff
  2. if \(\varphi\), \(\psi\) are wff then \(\varphi \wedge \psi\) is a wff
  3. if \(\varphi\), \(\psi\) are wff then \(\varphi \vee \psi\) is a wff
  4. if \(\varphi\) is a wff then \(\neg \varphi\) is a wff

Constructor Approach

It is useful to express these rules with constructors, which define wffs as values of some functions (with codomain \(\mathrm{WFF}\))

In this approach atomic formulas are values of functions:

Definition 1.1 (Atomic formulas) Atomic formulas are values of functions like:

\[ P:\mathbb{N} \to \mathrm{WFF}, \quad :i \mapsto P_i \]

or

\[ ''\cdot'': \mathrm{String} \to \mathrm{WFF}, \quad :x \mapsto "x" \]

Example 1.1 (String Constructor) with the latter we can construct arbitrary propositions like:

“today\(\sqcup\)is\(\sqcup\)sunny”

We also have constructors for the logical connectives:

Definition 1.2 (Constructors for Logical Connectives) \[ \begin{aligned} &(\neg):\mathrm{WFF} \to \mathrm{WFF}, \quad :\varphi \mapsto \neg\varphi \\ &(\land) : \mathrm{WFF} \times \mathrm{WFF} \to \mathrm{WFF}, \quad :(\varphi, \psi) \mapsto \varphi \land \psi \\ &(\lor) : \mathrm{WFF} \times \mathrm{WFF} \to \mathrm{WFF}, \quad :(\varphi, \psi) \mapsto \varphi \lor \psi \\ &(\Rightarrow) : \mathrm{WFF} \times \mathrm{WFF} \to \mathrm{WFF}, \quad :(\varphi, \psi) \mapsto \varphi \Rightarrow \psi \\ \end{aligned} \]

Remark 1.1 (Constructor vs Symbol View of Logical Connectives). Earlier we wrote \(\varphi \Rightarrow \psi\) and then we denoted \(\Rightarrow\) symbol as a function of type \(\mathrm{WFF} \times \mathrm{WFF} \to \mathrm{WFF}\) , we use \((\Rightarrow)\) to distinguish between the two concepts.

A different but related question that arises si the ambiguity of \(P_1 \Rightarrow P_2 \Rightarrow P_3\). According to the inductive definition there are two ways this formula could have been constructed which corresponds to the different formulas:

  1. \((P_1 \Rightarrow P_2) \Rightarrow P_3\)
  2. \(P_1 \Rightarrow (P_2 \Rightarrow P_3)\)

To resolve this ambiguity we define the associativity rule:

Definition 1.6 (Associativity Rule for \(\Rightarrow\)) \[ P_1 \Rightarrow P_2 \Rightarrow P_3 := (P_1 \Rightarrow P_2) \Rightarrow P_3 \]

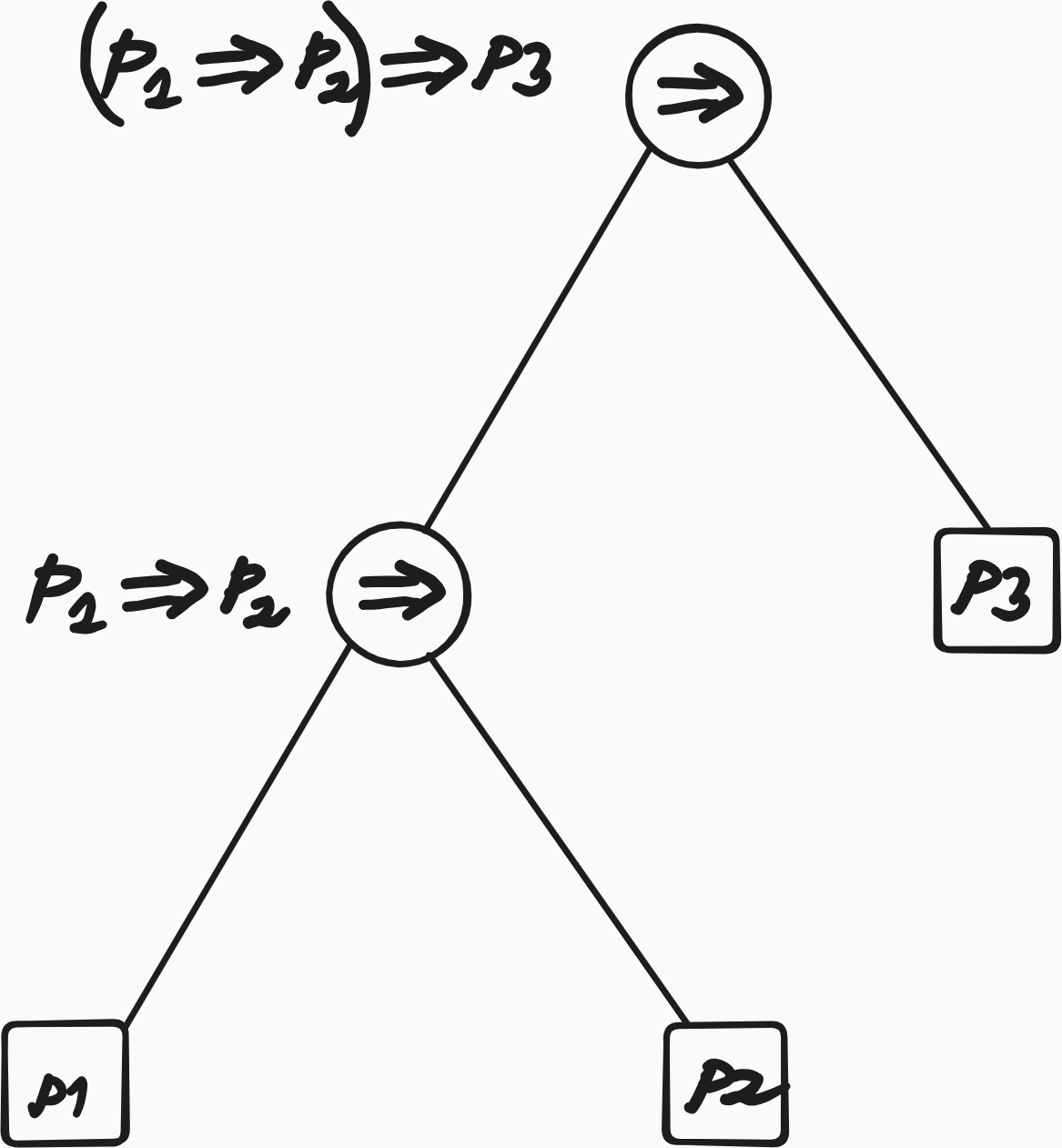

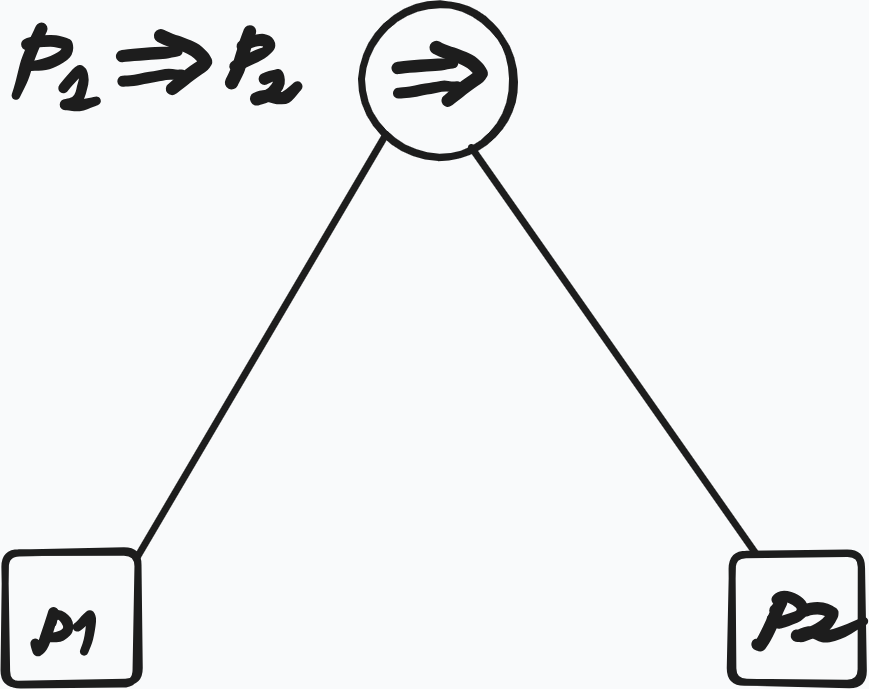

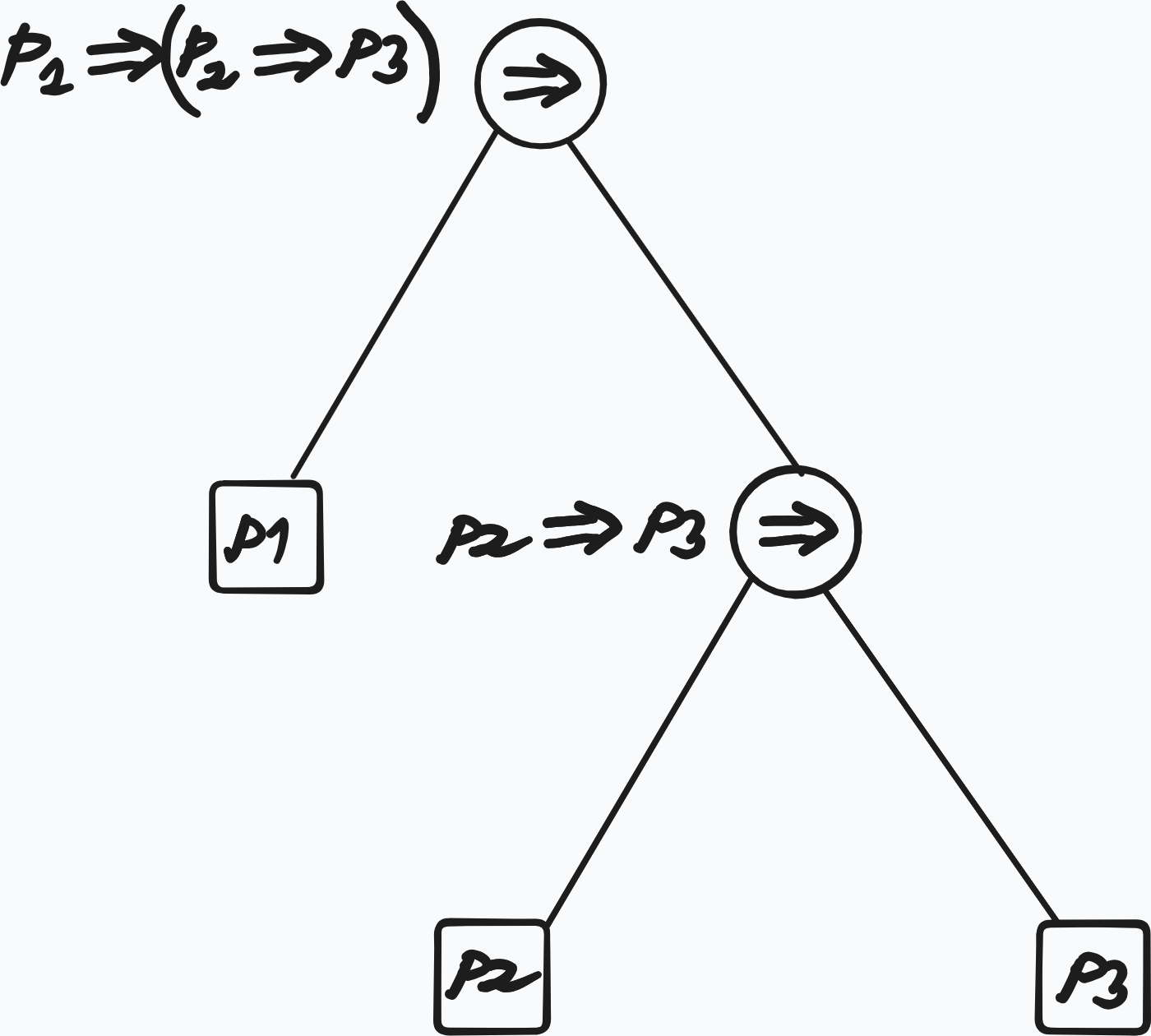

Remark 1.2 (Wffs as Trees). Wffs can be viewed as trees. Trees encode the derivation structure and resolve the ambiguity

tree 1

tree 2

tree 3
Figure 1.1

our collection of wffs can be further enriched with another binary constructor:

\[ \begin{aligned} (\Leftrightarrow)&:\mathrm{WFF} \times \mathrm{WFF} \to \mathrm{{WFF}} \\ &: (\varphi, \psi) \mapsto \varphi \Leftrightarrow \psi \end{aligned} \]

Remark 1.3 (Meaning of \(\Leftrightarrow\)). At this stage there is no relation between

\[ \varphi \Leftrightarrow \psi \quad \text{and} \quad (\varphi \Rightarrow \psi) \land (\psi \Rightarrow \varphi) \]

Let is give another ‘set-theoretic’ approach

Set Theoretic Approach

First we define the alphabets:

Definition 1.3 (Set Theoeretic Approach to Defining Wffs) We start with the alphabets:

\[ \begin{aligned} \mathcal{A} &:= \{P_i\}_{i \in \mathbb{N}} && \text{(sub-alphabet of atomic formulas)} \\ \mathcal{C} &:= \{\Rightarrow, \land, \lor, \neg, \Leftrightarrow\} && \text{(sub-alphabet of logical connectives)} \\ \mathcal{V} &:= \mathcal{A} \cup \mathcal{C} \cup \{(, )\} && \text{(alphabet of propositional logic, including punctuation marks)} \end{aligned} \]

Then we define the so-called Kleene Closure of \(\mathcal{V}\):

Definition 1.4 (Kleene Closure of \(\mathcal{V}\)) \[ \mathcal{V}^* := \bigcup_{i = 0}^\infty \mathcal{V}_{i} \]

\(\mathcal{V}^*\) is the language containing all sorts of strings that can be constructed from the alphabet \(\mathcal{V}\), also senseless ones.

To define the language propositional logic that contains only the formulas that we want and nothing else, we take the usual set-theoretic approach of taking the infinite union of all sets \(\mathcal{W} \subseteq \mathcal{V}\) that satisfy the following properties:

  1. \(\mathcal{A} \subseteq \mathcal{W}\)
  2. if \(\varphi, \psi \in \mathcal{W}\) then \(\varphi \diamond \psi \in \mathcal{W}\), where \(\diamond \in \{\Rightarrow, \land, \lor, \Leftrightarrow\}\)
  3. if \(\varphi \in \mathcal{W}\) then \(\neg\varphi\in\mathcal{W}\)

Then the language of propositinal logic is defined as:

Definition 1.5 (Language Propositional Logic as Infinite Intersection) \[ \mathcal{F}(\mathcal{A}) := \bigcap\{\mathcal{W} \subseteq \mathcal{V}^* | \mathcal{W} \text{ satisfies (1), (2), and (3)}\} \]

Theorem 1.1

With this construction \(\mathcal{F}(\mathcal{A})\) is the smallest set that satisfies the properties (1), (2) and (3), i.e.

  1. \(\mathcal{F}(\mathcal{A})\) satisfies the properties (1), (2) and (3)
  2. For any set \(\mathcal{W}\) that satisfies the properties (1), (2) and (3) we have \(\mathcal{W} \subseteq \mathcal{F}(\mathcal{A})\)

Summary

  • WFF is defined inductively
  • Constructors that generate WFFs
  • Set theoretic construction of WFFs
